Product Description

The Radiavector is a  low-level radiator that packs a punch – with four heights from 70mm up to 280mm, it’s designed to fit in environments where space is tight whilst maintaining the required output for that room.

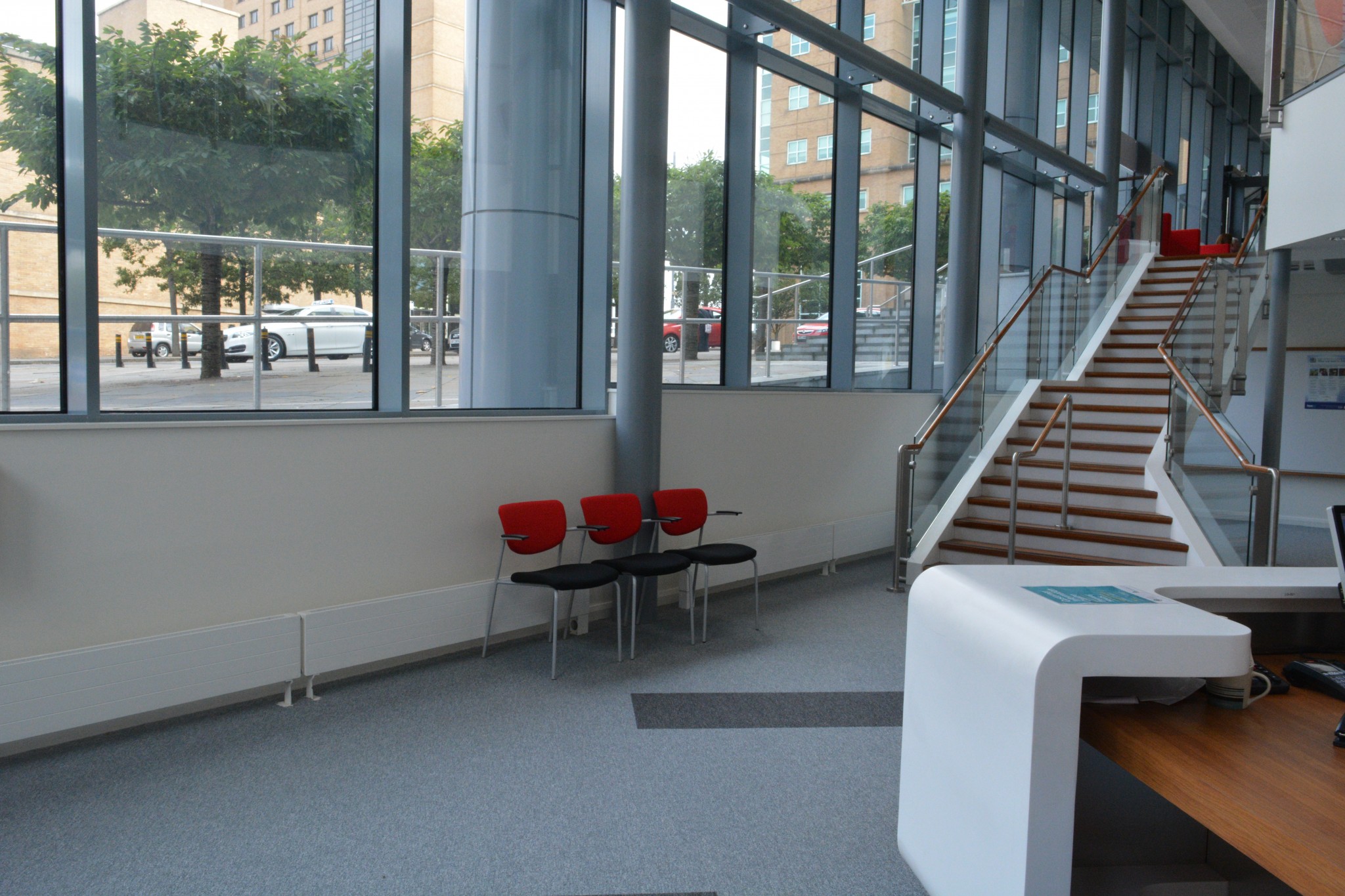

Wall or floor mounted on feet, the Radiavector can  stretch up to three metres high. The floor-mounted option allows the Radiavector to sit free-standing in front of glass walls or where internal glass dividers are common.

Optional top grille prevents unwelcome objects dropping into the radiator’s convector fins.

Four depth options with various panel and convector configurations make the Radiavector an easy choice for any project.

Outputs

Technical Drawings

K22 and 34 k46 and 58

Brochures

If the brochure does not appear, please clear your cache  by pressing CTRL + F5 together on your keyboard

Warranty

Merriott products are guaranteed for a period of 10 years from date of purchase in respect of defective materials and workmanship. The system should be designed in accordance with British Standard Code of Practice for Water Based Heating Systems in Buildings BS EN 12828:2012+A1:2014 and BS EN 12831: 2003. The installation and commissioning of the system should comply with BS EN 14336:2004. On completion of the installation, the system should be properly flushed and filled in accordance with the British Code of Practice for the Treatment of Water in Domestic Hot Water Central Heating Systems BS 7593:2006, Part L of Building Regulations and Good Practice Guidance for Scotland. Merriott strongly recommends the use of corrosion inhibitor for all applications. Failure to observe these standards may invalidate the manufacturer’s warranty.
